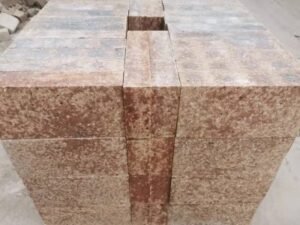

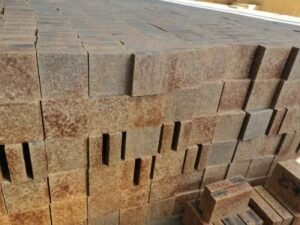

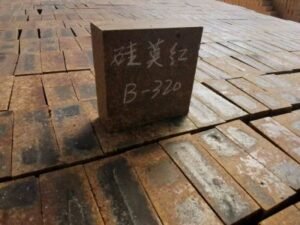

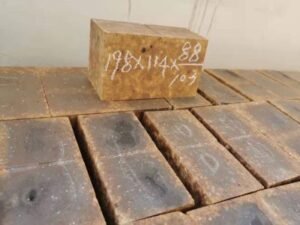

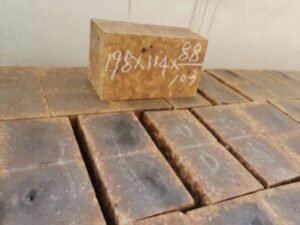

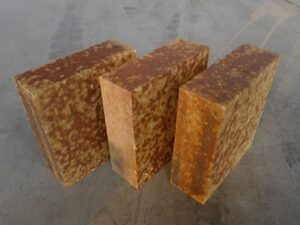

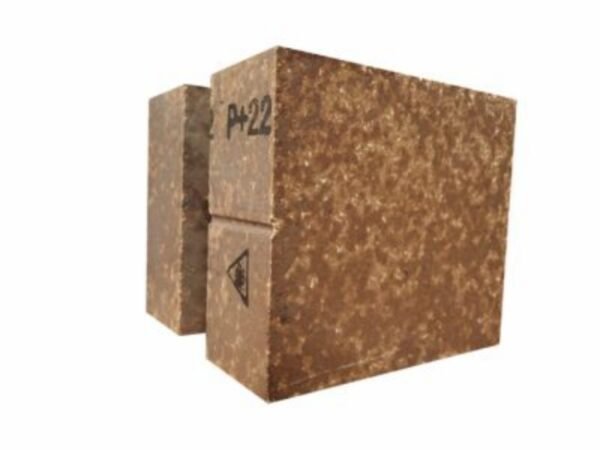

Silica-mullite Fire Brick
Silicon-mullite brick, also known as silicon carbide-mullite composite refractory brick, is commonly called wear-resistant brick or HMS high-wear-resistant brick. “Silicon” represents silicon carbide (SiC), and “mullite” represents mullite (3Al₂O₃・2SiO₂), belonging to modified high-alumina sintered refractory materials.
- Main raw materials: High-alumina bauxite clinker, silicon carbide particles, mullite fine powder, a small amount of binding clay, additives, and some formulations add andalusite to create silicon-mullite red bricks (with better thermal shock resistance).
- Production process: Batching and mixing → High-pressure molding → High-temperature sintering at 1400~1600℃ to form a dense composite crystalline structure.
- Main crystalline phases: Mullite is the framework matrix, and silicon carbide is the wear-resistant reinforcing phase.
Characteristics of Silica-mullite Fire Brick
1. Wear and erosion resistance far exceeds that of ordinary high-alumina bricks and phosphate bricks.
2. Resistant to thermal shock and spalling, suitable for kilns with large temperature fluctuations.
3. Resistant to alkali erosion and sulfur penetration, suitable for the complex atmosphere of cement kilns.
4.High-temperature structural stability, high load softening temperature, not prone to bulging or deformation after long-term use.
Application of Silica Mullite Refractory Brick
Cement Industry
Cement rotary kiln front transition zone, rear transition zone, decomposition zone, preheating zone, kiln mouth, and cooling zone; these areas lack stable kiln lining, experience significant erosion and wear, and are severely affected by alkali corrosion. This is the most typical application location for silica-mullite bricks, significantly extending kiln lining life by replacing traditional high-alumina bricks.
Metallurgical Industry
Blast furnace throat, intermediate temperature sections of hot blast stoves, sintering machine linings, and wear-resistant sections of vertical kilns.
Boiler & Energy Industry
Wear-resistant linings for circulating fluidized bed (CFB) boiler furnaces, cyclone separators, and flues, resistant to fly ash erosion.
Other Kilns
Lime rotary kilns, waste incineration kilns, and partial wear-resistant linings for coke ovens.
Silica-mullite Fire Brick Technical Parameters
As a professional refractory bricks supplier, we provide you with detailed technical specifications for silica mullite refractory bricks to assist you in making the right choice. The following represent our standard specifications. Additionally, we offer customized refractory brick services tailored to the specific requirements of your kiln.
Silica-mullite Brick
| LX-GM-1680 | LX-GM-1650 | LX-GM-1550 | ||
| Physical Property: | ||||
| Bulk Density(g/cm3) | ≥ | 2.65 | 2.60 | 2.50 |
| Cold Crushing Strength(MPa) | ≥ | 90 | 85 | 80 |
| Refractoriness UnderLoad(T0.6 ℃) | ≥ | 1680 | 1650 | 1550 |
| Thermal Conductivity (1000℃)(W/m.K) | ≤ | 2.0 | 2.3 | 2.3 |
| Abrasion Resistance(cc) | * | 7.8 | 8.2 | 8.5 |
| Thermal Shock Resistance (1100℃,Water)(Cycles) | ≥ | 12 | 10 | 10 |
| Chemical Analysis(%) | ||||
| Al2O3 | ≥ | 65 | 65 | 60 |
Common Grade Classifications
Medium-temperature wear-resistant, suitable for preheating zones and low-load areas
General-purpose mainstream model, standard for cement kiln transition zones
High-temperature, high-strength type, suitable for high heat loads and harsh wear conditions
With the addition of andalusite, thermal shock resistance is further improved, making it the preferred choice for scenarios with frequent temperature changes
Silica Mullite Refractory Brick Price
Our wholesale refractory bricks prices are flexible and can be adjusted based on various factors, including order quantity, product specifications (size, shape), refractory rating (standard, medium, high), and delivery terms. For custom-made silica mullite refractory bricks (non-standard specifications or special refractory ratings), prices will be negotiated based on raw material costs, production complexity, and order quantity.
As a reliable refractory brick supplier, we are committed to providing you with the best quotes and will offer detailed quotations based on your specific order requirements to help you effectively control procurement costs.
Why Choose Ruitai Lianxin Silica Mullite Fire Bricks?

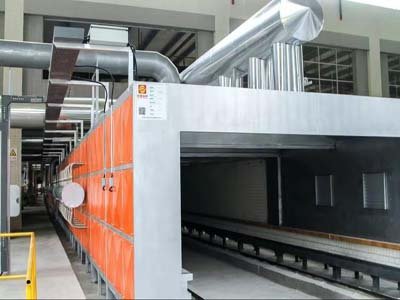

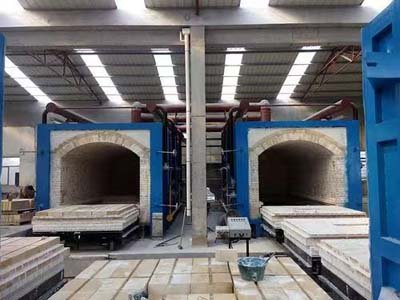

Ruitai Lianxin is a leading refractory bricks manufacturer, operating its own dedicated facility and committed to providing global customers with factory-direct refractory bricks and high-quality wholesale services.
Factory Direct Sales Advantages
As a direct seller of refractory fire bricks, we can offer highly competitive prices while ensuring product quality, and control the entire process from raw materials to finished products.
Rigorous Quality Control
Our refractory brick facility features advanced production lines and a professional quality inspection team that conducts rigorous testing on every batch of products to ensure compliance with international standards.
Custom Refractory

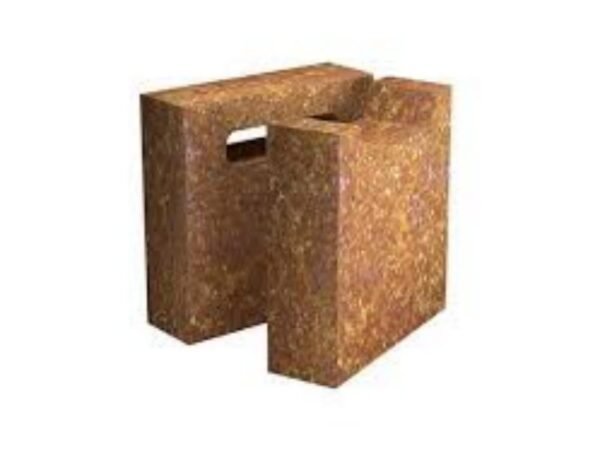

Within our advanced refractory brick facility, we manufacture custom-sized and specially shaped silica mullite bricks using engineering drawings, fully satisfying your unique kiln operations.
Rapid Delivery and Export-Grade Packaging
We utilize high-strength strapping bands and solid wood pallets for reinforcement, while also offering customized packaging solutions. We strictly adhere to our delivery commitments, ensuring your order is delivered on time within 20 to 30 days.
