The operating environment of industrial kilns is extremely harsh. Therefore, selecting suitable kiln bricks is crucial for ensuring stable kiln operation and extending the service life of the kiln lining. Ruitai Lianxin can design the most suitable refractory brick solution for a kiln based on its specific operating conditions.
1. Challenges in the operation of industrial kilns
Many industrial kilns experience operational problems due to improper refractory lining design.
(1) High-temperature damage
Kilns typically operate at temperatures above 1200°C. Ordinary refractory materials may undergo structural degradation, deformation, or melting under prolonged high temperatures.
(2) Chemical corrosion
In industries such as cement and lime production, the kiln atmosphere contains alkaline substances, slag, and chemical vapors. These substances corrode the refractory lining over time.
(3) Thermal shock
Frequent heating and cooling cycles can cause refractory bricks to crack or peel off, thereby reducing their durability.
(4) Mechanical wear
The continuous rotation, material movement, and friction inside the kiln gradually wear down the lining material.
Without reliable refractory bricks, these problems can lead to frequent downtime for maintenance and high operating costs.
2. Fire brick solutions for industrial kilns
Selecting the appropriate refractory bricks based on operating conditions is the most effective way to improve kiln performance.

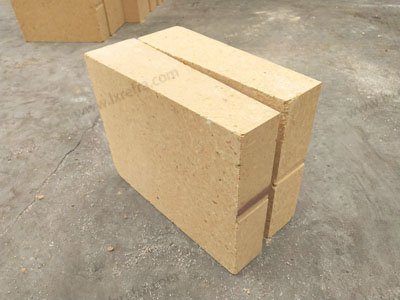

(1) High-alumina fire bricks for high-temperature zones
High-alumina kiln bricks are widely used in extremely high-temperature zones due to their excellent refractory properties and structural stability.
Its main advantages include:
- High temperature resistance;
- High load-bearing capacity;
- Excellent wear resistance;
- Stable continuous operation performance.
Refractory high-alumina bricks are typically installed in the combustion zone and other critical parts of rotary kilns.
(2) Refractory insulating bricks that improve energy efficiency
Insulating bricks have excellent heat preservation properties, which help reduce heat loss and improve thermal efficiency.
Insulating bricks have the following advantages:
- Reduced energy consumption;
- Reduced heat transfer to the kiln shell;
- Improved temperature stability;
- Reduced kiln structural weight.
(3) Alkali-resistant kiln bricks
In cement kilns and lime kilns, alkaline substances and chemical gases can cause serious damage to refractory linings.
Magnesia bricks, magnesia-chrome bricks, magnesia-carbon bricks, and other alkaline refractory bricks are specially designed to possess the following characteristics:
- Resistance to chemical corrosion;
- Maintaining structural integrity in harsh environments;
- Extending the service life of kiln linings.
These bricks are typically used in transitional zones where chemical erosion is most severe.
3. Optimized kiln lining design
In addition to material selection, a reasonable kiln lining design is also crucial.
① Use wear-resistant bricks in high-wear areas;
② Use high-alumina bricks in high-temperature areas;
③ Use heat-insulating bricks in low-temperature areas;
④ Customize the shape to achieve compact installation.
A well-designed kiln lining can significantly improve operational reliability.
High-performance kiln bricks are widely used in various high-temperature industries, including cement rotary kilns, lime kilns, ceramic kilns, metallurgical furnaces, and glass kilns.
Each application requires specific refractory material properties to withstand unique operating conditions.
4. Advantages of high-quality fire bricks
① Extends the service life of the kiln lining;
② Reduces maintenance frequency;
③ Improves kiln thermal efficiency;
④ Reduces operating costs;
⑤ Provides stable high-temperature performance.
For industrial kilns, selecting reliable refractory material solutions directly contributes to improved production efficiency and long-term cost savings.
Kiln bricks play a crucial role in maintaining the efficiency and durability of industrial kilns. Furthermore, by selecting a suitable refractory material manufacturer, kiln lining design can be optimized, effectively reducing wear, resisting chemical corrosion, and maintaining stable high-temperature operation.
